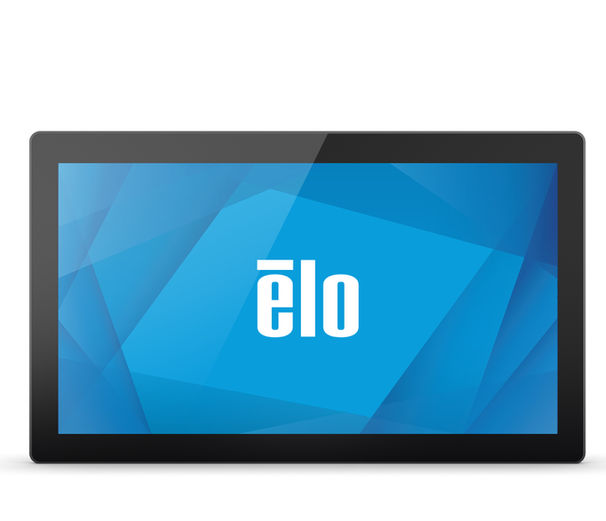

Elo 2094L Widescreen Open-Frame Touchmonitor
The Elo 2094L 19.5-inch open frame widescreen touchscreen displays deliver an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses.
TouchPro® PCAP technology supports touch-thru functionality for installations that require a front layer of glass with thicknesses up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, Elo's robust TouchPro® PCAP units are purpose-built for durability in various applications and environments from self-service kiosks to highly used gaming cabinets and harsh industrial machines.
Elo are one of the few manufacturers to design and build the complete solution, with touch integrated from the start. Their robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI, all backed by a worldwide three-year manufacturers warranty as standard.
For further information on this product, or to place an order, please call us on +44 (0)330 555 0155 or use our contact page.
APPLICATIONS
-
Self-Service
-
Industrial automation
-
Gaming
-
Point of sale
SPECIFICATIONS
-
19.5" display
-
1920 x 1080 display resolution
-
Choice of IntelliTouch® (SAW) or 10-point TouchPro® touch technology
-
1593L : ±89° or 178° total / Vertical: ±89° or 178° total viewing angle
-
225nits brightness (typical)
-
20msec response time
-
2000:1 contrast ratio
-
HDMI, VGA & Display Port video inputs
-
Dual Serial/USB touch interface on IntelliTouch® models, USB-only on TouchPro® models
-
VESA-100 mounting point
-
IK07 impact compliant (TouchPro® models only)
-
GLI 27 kV air / 8 kV contact ESD compliant (TouchPro® models only)
-
UL 62368 ball-drop compliant (TouchPro® models only)
-
Factory-sealed LCD and bezel
-
Three year manufacturers warranty
PART NUMBERS
-
E328883 - Elo 2094L IntelliTouch®
-
E331214 - Elo 2094L TouchPro®
NOTE: Power supply NOT included as standard (see Accessories below)
COMPATIBLE WITH
-
Elo Backpack® 4
WARRANTY AND OPTIONS
Three year manufacturers warranty as standard, extendable to five years as below
-
E898247 - 4 year warranty coverage
-
E898449 - 5 year warranty coverage
-
E898648 - 3 year warranty coverage + Advance Unit Replacement (AUR)
-
E894921 - 4 year warranty coverage + Advance Unit Replacement (AUR)
-
E895125 - 5 year warranty coverage + Advance Unit Replacement (AUR)
ACCESSORIES
-
E180092 - Elo power supply, UK power cord
-
E571601 - Elo power supply, EU and KR power cord
-
E239980 - Elo 24V/DC 12V power convertor
-
E066148 - Elo TouchPro stylus
-
E201156 - Elo 2094L Side-mounting bracket set (for IntelliTouch models only)
-
E190706 - Elo 2094L/2294L/2295L Flush-mount bracket set (for TouchPro® models only)
-
E553352 - Elo 2094L/2294L/2295L Front-mount bezel kit (for IntelliTouch models only)
-
E553538 - Elo 2094L/2294L/2295L Rack-mount bracket set (for IntelliTouch models only)
-
E483757 - Elo wired remote OSD controller (RJ-45)
ADDITIONAL RESOURCES
ORDERING
Any pricing listed online is correct at time of writing but may be due to daily pricing fluctuations. We recommend that anyone interested in purchasing these items, or requiring a quote, to contact us in the first instance to get our best pricing and also details of product availability.
As Elo Elite-level partners, we get significant discounts against non-Elite partners and we pass those saving on to our customers. We can also request additional pricing support from Elo for enquiries of high value, competitive deals against other manufacturers, continuous orders and large Government orders.
We offer trade discount for system integrators, resellers, charities and Government buyers.
For further information, or to place an order, please call us on +44 (0)330 555 0155 or use our contact page.
