HOME / TOUCHCOMPUTERS / Elo I-Series 2.0 with Intel

​

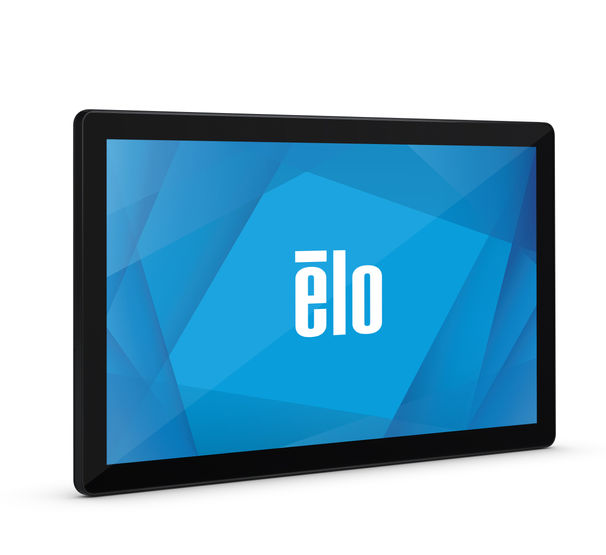

Elo I-Series 2.0 with Intel Touchcomputer




​

Elo's I-Series 2.0 with Intel delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor.



Built on a modular platform and available with either a 15.6-inch or 22-inch display, the I-Series 2.0 can be found in  installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.



From self-order kiosks and point-of-sale systems to in-store interaction, kitchen display systems, price checkers and meeting room signage, the Elo I-Series offers versatility across environments.



Take advantage of Elo's Edge Connect system which offers a wide assortment of peripheral options that fit flush to the edge of the display for a clean design and extended functionality. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change.

​

Elo are one of the few manufacturers to design and build the complete solution, with touch integrated from the start. Their robust touchcomputers offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI, all backed by a worldwide three-year manufacturers warranty as standard.

​

For further information on this product, or to place an order, please call us on +44 (0)330 555 0155 or use our contact page.

​

​

APPLICATIONS

  • All-in-one interactive solution where space is a premium

  • Self-service

  • Point-of-sale

  • Interactive presentations

  • Kitchen display solutions

  • Check-in systems

  • Industrial automation

​

​

SPECIFICATIONS

  • All-in-one touchscreen display with integrated computer system

  • 10-point TouchPro® (Projected Capacitive) touch technology

  • 1920 x 1080 display resolution

  • 15.6" models : Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total viewing angle

  • 21.5" models: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total viewing angle

  • 225nits-270nits brightness (typical) depending on model

  • 14ms to 25ms response time depending on model

  • 700:1 to 1000:1 contrast ratio depending on model

  • Choice of 9th Generation Intel Celeron, Core i3 and Core i5 processors

  • 128Gb SSD storage

  • Gigabit LAN, 802.11a/b/g/n/ac + Bluetooth 5.0 via external antenna

  • 4x USB Micro-USB EdgeConnect ports, 1x USB 3.0 port

  • Internal speakers

  • VESA 75 and 100 mounting points

  • Available with Windows 10 pre-installed or no O/S for Linux SuSE, Ubuntu and Red Hat deployments

  • Three year manufacturers warranty

​

​

PART NUMBERS

  • E692048  -  Elo I-Series 2.0, Intel® Celeron® J4125, 4Gb, 128Gb, 15.6", TouchPro®, No O/S

  • E850204  -  Elo I-Series 2.0, Intel® i3-9100TE, 8Gb, 128Gb, 15.6", TouchPro®, Windows 10

  • E850003  -  Elo I-Series 2.0, Intel® i3-9100TE, 8Gb, 128Gb, 15.6", TouchPro®, No O/S

  • E692244  -  Elo I-Series 2.0, Intel®  i5-9500TE, 8Gb, 128Gb, 15.6", TouchPro®, Windows 10

  • E692448  -  Elo I-Series 2.0, Intel®  i5-9500TE, 8Gb, 128Gb, 15.6", TouchPro®, No O/S

​

  • E692640  -  Elo I-Series 2.0, Intel® Celeron® J4125, 4Gb, 128Gb, 21.5", TouchPro®, No O/S

  • E692837  -  Elo I-Series 2.0, Intel® Celeron® J4125, 4Gb, 128Gb, 21.5", TouchPro®, No O/S

  • E850591  -  Elo I-Series 2.0, Intel® i3-9100TE, 8Gb, 128Gb, 21.5", TouchPro®, Windows 10

  • E850387  -  Elo I-Series 2.0, Intel® i3-9100TE, 8Gb, 128Gb, 21.5", TouchPro®, No O/S

  • E693022  -  Elo I-Series 2.0, Intel®  i5-9500TE, 8Gb, 128Gb, 21.5", TouchPro®, Windows 10

  • E693211  -  Elo I-Series 2.0, Intel®  i5-9500TE, 8Gb, 128Gb, 21.5", TouchPro®, No O/S

​

​

WARRANTY AND OPTIONS

Three year manufacturers warranty as standard, extendable to five years as below

  • E819598  -  4 year warranty coverage

  • E819795  -  5 year warranty coverage

  • E820186  -  3 year warranty coverage + Advance Unit Replacement (AUR)

  • E820388  -  4 year warranty coverage + Advance Unit Replacement (AUR)

  • E820582  -  5 year warranty coverage + Advance Unit Replacement (AUR)

​

​

ACCESSORIES

  • E001002  -  Elo Magnetic Stripe Reader (MSR)

  • E134286  -  Elo Fingerprint Scanner

  • E393160  -  Elo 2D Barcode Scanner (Black - SE2707)

  • E384627  -  Elo 2D Barcode Scanner (Black - SE4720)

  • E245047  -  Elo 2D Barcode Scanner (Black - SE4107)

  • E201494  -  Elo Webcam

  • E134699  -  Elo 3D Webcam



  • E066148  -  Elo PCAP Stylus Pen

​

  • E375343  -  Elo EMV Cradle for MagTek eDynamo

  • E586981  -  Elo EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB)

  • E710930  -  Elo EMV Cradle for Ingenico RP457c (with BT and USB)



  • E644767  -  Elo Status Light (Micro-USB Connectivity)



  • E673037  -  Elo RFID

​

  • E894719  -  Elo Elo Edge Connect™ Speaker Bar, black

​

  • E350807  -  Elo USB Hub and mounting bracket

  • E350616  -  Elo Right angle RJ LAN cable adaptor kit

  • E667197  -  Elo Right angle 6ft USB-C cable kit

  • E350996  -  Elo USB-C Hub & Bracket kit

  • ​E641484  -  Elo RJ45 to DB9 cable kit

​

  • E369922  -  Elo 100W USB-C power supply



  • E143088  -  Elo Wall-mount bracket kit

  • E388675  -  Elo VESA mounting plate (for 15.6" models only)

​

  • E043382  -  Elo Shelf Mount Bracket (75mm or 100mm VESA)

​​

  • E047458  -  Elo Pole Mount – 6 inch (75mm or 100mm VESA)

  • E047663  -  Elo Pole Mount – 12 inch (75mm or 100mm VESA)

  • E047864  -  Elo Pole Mount – 18 inch (75mm or 100mm VESA)

  • E045151  -  Elo Pole Mount Bracket (75mm or 100mm VESA)

​

  • E044162  -  Elo Tabletop Stand (for 15.6" models, also requires E388675)

  • E044356  -  Elo Tabletop Stand (for 22" models only)

​

  • E048069  -  Elo Floor Stand (75mm or 100mm VESA)

​

  • E514693  -  Elo Slim Self-Service Countertop Stand

  • E515260  -  Elo Slim Self-Service Floor Stand

​

  • E421137  -  Elo Wallaby™ Self-Service Countertop Stand

  • E797162  -  Elo Wallaby™ Self-Service Floor Stand



​

ADDITIONAL RESOURCES

​

​

ORDERING

Any pricing listed online is correct at time of writing but may be due to daily pricing fluctuations.  We recommend that anyone interested in purchasing these items, or requiring a quote, to contact us in the first instance to get our best pricing and also details of product availability.

​

As Elo Elite-level partners, we get significant discounts against non-Elite partners and we pass those saving on to our customers.  We can also request additional pricing support from Elo for enquiries of high value, competitive deals against other manufacturers, continuous orders and large Government orders.

​

We offer trade discount for system integrators, resellers, charities and Government buyers.

​

For further information, or to place an order, please call us on +44 (0)330 555 0155 or use our contact page.

​
